ASTM A312 TP304 1.4301 S30400 Stainless Steel Seamless Pipe For Petrochemical Industry

Product Categories
Yuhong Group Co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

ASTM A312 TP304 1.4301 S30400 Stainless Steel Seamless Pipe For Petrochemical Industry

Brand Name : YUHONG

Model Number : TP304 / 1.4301 / UNS S30400

Certification : ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015

Place of Origin : China

MOQ : 100 KGS

Price : Negotiable

Payment Terms : T/T, L/C

Delivery Time : 10-90 Work Days

Packaging Details : According to Client Requirements/ Ply-wooden Case/ Iron Case/ Bundle with plastic Cap

Supply Ability : According to Client Requirements

Standard : EN10216-5,ASTM A312 / A312M

Material : TP304 / 1.4301 / UNS S30400

Type : Seamless, Welded

Outer diameter : 6mm-630mm or customized

Thickness : 0.4-30mm

Length : 6 Meters or customized

Shape : Round Pipe

Solution : Pickled,Annealed

Ends : Bevled End, Plain End, Thread End

Application : Decoration,Construction,boiler,oil and gas,electric

High Light : seamless boiler tubes, seamless stainless steel tube

Contact Now

ASTM A312 TP304 1.4301 S30400 Stainless Steel Seamless Pipe For Petrochemical Industry

ASTM A312 TP304 stainless steel seamless pipe is the most widely used stainless steel on the market and these grades are austenitic chromium alloy, also known as "18/8" stainless steel, because the composition of this steel is 18% chromium and 8% nickel. ASTM A312 TP304 is an austenitic alloy grade designed with a superior composition of nickel and chromium. ASTM A312 TP304 stainless steel has excellent resistance against corrosive and oxidative media across stress-induced environments. It also has outstanding mechanical properties.

SS304, is also referred to as 18/8 or SUS304 or UNS S30400. Compared to most carbon steels, the thermal conductivity and electrical conductivity of this alloy steel are lower. Yet the corrosion resistance properties of SS304 stainless steel pipe tends to be higher in comparison to carbon steels due to the addition of chromium and nickel. The addition of Nickel also imparts the alloy with many characteristics. For instance, the yield strength, resistance to oxidation, and impact strength or hardness properties of ASTM A312 TP304 stainless steel pipe have a significant increase, in comparison to carbon steels at both low temperatures and elevated temperatures. The resistance to oxidation is further improved by high content of chromium in SS304 seamless pipe, due to the formation of a passivated oxide layer.

Features:

High strength

Good formability

Good resistant to high pressure

Excellent resistant to high temperature

Resistant to high mechanical stresses

Equivalent Material Grades:

GRADE UNS NO OLD BRITISH EURONORM SWEDISH SS JAPANESE JIS
BS EN NO NAME
SS304 S30400 304S31 58E 1.4301 X5CrNi18-10 2332 SUS 304

Specification:

Specifications ASTM A 312 / ASME SA312
Grade TP304 / 1.4301 / UNS S30400
Dimensions ASTM, ASME and API
Sizes 1/2” – 30”
Schedule SCH10 - SCHXXS
Type Seamless / ERW / Welded / Fabricated / LSAW Pipes
Form Round
Length Single Random, Double Random & Cut Length.
End Plain End, Beveled End, Treaded

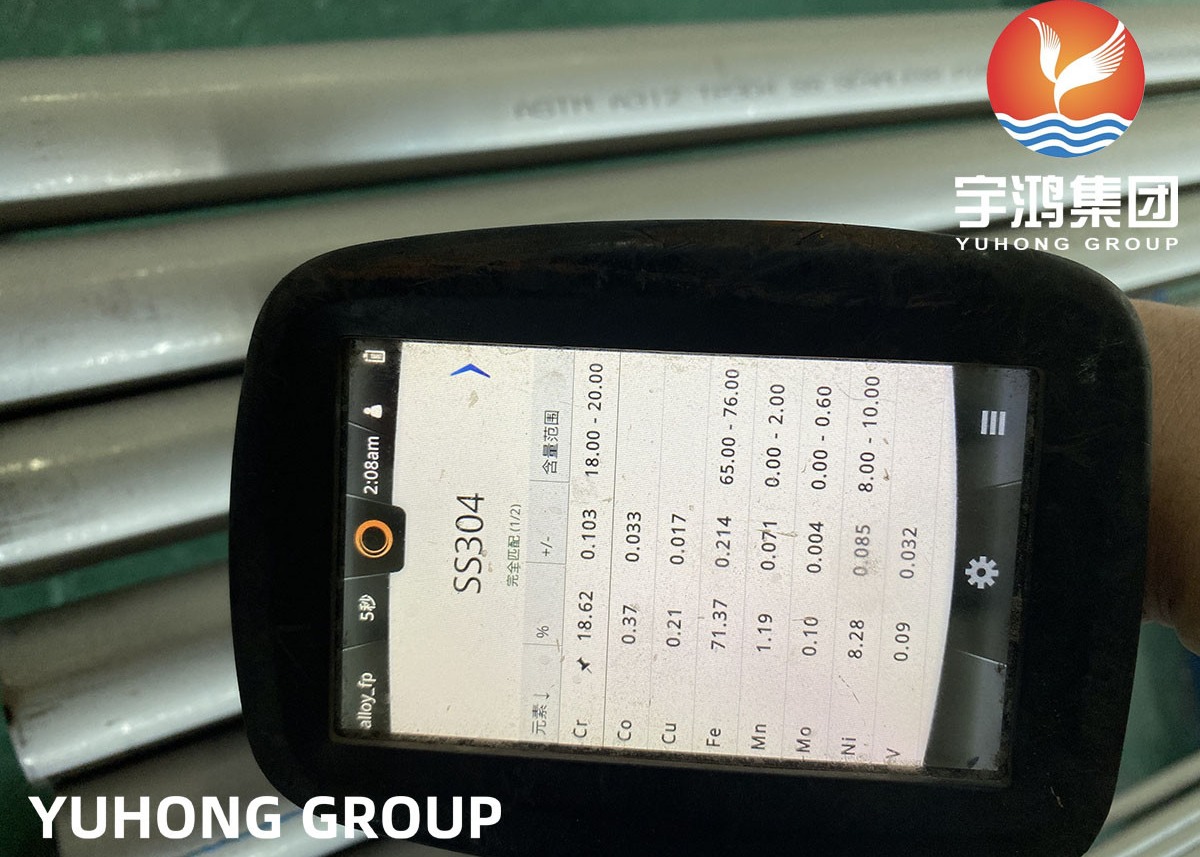

Chemical Composition:

Grade, % SS304
Ni 8 – 11
Fe Balance
Cr 18 – 20
C 0.08 max
Si 0.75 max
Mn 2 max
P 0.04 max
S 0.03 max

Mechanical Properties:

Grade SS304
Rockwell B (HR B) max 92
Brinell (HB) max 201
Tensile Strength min (MPa) 515
Yield Strength 0.2% Proof min (MPa) 205
Elongation min (% in 50mm) 40

Applications:

Refineries

Fertilizers

Heat-Exchangers

Oil and Gas Plant

Chemical Plant

Petrochemical Plant

Paper & Pulp Industry

Sugar Industry

Water Treatment System

Construction

Food Processing Plant
