Brand Name : YUHONG
Model Number : ASTM B366 Inconel 600 Swept Tee
Certification : ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015
Place of Origin : China
MOQ : 1PC
Payment Terms : T/T, L/C
Delivery Time : according to quantity
Packaging Details : Plywood case/Pallet
Price : negotiation
Supply Ability : 500 tons per month
Standard : ASTM B366/ASME SB366
Material : INCONEL 600/UNS N06600/2.4816
Type : Swept Tee
Connection : Welding
Size : 1/2''-48''(DN15-DN1200) or custom size
Thickness : SCH10-XXS(2-60mm)
Surface : Sand Blasting
Packing : Plywood case/Pallet
Overview:
The Inconel 600 swept tee is a type of tee fitting made from Inconel 600, a nickel-chromium alloy renowned for its excellent corrosion resistance and high-temperature strength. It features a sweeping design on one or more branches, allowing for smooth fluid flow and reducing pressure drop within the tee. Inconel 600 swept tees are commonly used in demanding applications involving aggressive environments, such as chemical processing, petrochemical, and power generation industries. They provide reliable performance, durability, and resistance to oxidation and stress corrosion cracking. Proper design and installation guidelines should be followed to ensure the optimal performance and integrity of Inconel 600 swept tees in various operating conditions.
Specification:
Standard | ASTM B366/ASME SB366 |
Material | Inconel 600/UNS N06600/DIN 2.4816 |
Type | Swept Tee |
Connection | Welding |
Size | 1/2''-48''(DN15-DN1200) or custom size |
Thickness | SCH10-XXS(2-60mm) |
Surface | Sand Blasting |
Packing | Plywood case/Pallet |
Chemical Composition:
Grade | Ni | Cr | Fe | Mn | C | Cu | Si | S |
UNS N06600 | 72.00 min | 14.0-17.0 | 6.0-10.0 | 1.0 max | 0.15 max | 0.5 max | 0.5 max | 0.015 max |
Mechanical Properties:
Density | Condition | Size | Tensile Strength, min psi (MPa) | Yield Strength (0.2 % offset), min, psi (MPa) | Elongation in 2 in. or 50 mm or 4D min,% |
8.47 g/cm3 | Cold-worked annealed | 5 in. (127 mm) in outside diameter and under Over 5 in. (127 mm) in outside diameter | 80 000 (550)
80 000 (550) | 35 000 (240)
30 000 (205) | 30
35 |
Applications:
1. Chemical Processing: Inconel 600 fittings are used in chemical plants for handling corrosive substances, acids, and alkaline solutions. They provide excellent resistance to a wide range of corrosive chemicals, making them suitable for applications such as piping systems, reactors, and heat exchangers.
2. Petrochemical Industry: Inconel 600 fittings are utilized in refineries and petrochemical plants for the transportation and processing of petroleum products, gases, and corrosive chemicals. Their resistance to high temperatures, pressure, and corrosive environments make them ideal for applications like pipelines, valves, and heat exchangers.
3. Power Generation: Inconel 600 fittings are employed in power plants, particularly in boiler systems and steam turbines. The high-temperature strength, oxidation resistance, and corrosion resistance of Inconel 600 allow for reliable performance in extreme heat and demanding conditions.
4. Aerospace and Defense: Inconel 600 fittings have application in the aerospace industry for components exposed to high temperatures, such as gas turbine engines, exhaust systems, and afterburners. They provide excellent creep resistance and retain strength at elevated temperatures.
5. Sea Water Applications: Inconel 600 fittings are used in marine environments due to their resistance to corrosion from seawater, making them suitable for seawater piping systems, heat exchangers, and desalination plants.
6. Heat Treatment Facilities: Inconel 600 fittings are utilized in heat treatment furnaces and related equipment, where they maintain their mechanical strength and resistance to oxidation at elevated temperatures.
![]() |

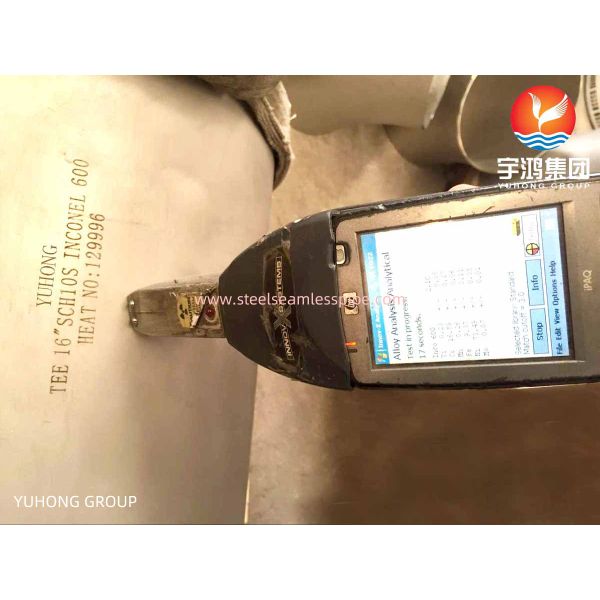

ASTM B366 Inconel 600 / UNS N06600 Swept Tee Nickel Alloy Steel Fitting Images |
