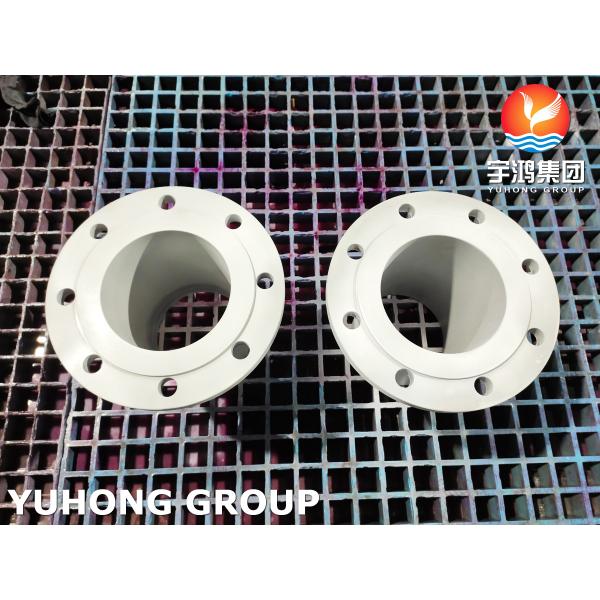

B564 Hastelloy C276 Flange Corrosion-Resistant N10276 Long Weld Neck

Name: B564 Hastelloy C276 Flange CorrosionResistant N10276 Long Weld Neck
Brand: YUHONG
Price: 1 USD

Wholesale B564 Hastelloy C276 Flange Corrosion-Resistant N10276 Long Weld Neck from china suppliers

Brand Name : YUHONG

Model Number : ASTM B564 HASTELLOY C276

Certification : ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008

Place of Origin : CHINA

MOQ : 1PC

Price : Negotiable

Payment Terms : T/T, L/C AT SIGHT

Supply Ability : 500 pcs per month

Delivery Time : Depends on quantity

Packaging Details : Ply-wooden Case /Iron Case/ Bundle with plastic Cap

Product Name : LONG WELD NECK FLANGE

Standard : ASTM B564 / ASME SB564

Material Grade : HASTELLOY C276 Flange, UNS (N10276), DIN (2.4819)

Dimensions : ANSI/ASTM B16.5

Size : Customized

Flange Type : Plate Face (FF), Rasied Face (RF), Ring Type Joint (RTJ)

Connection : Welded

Class/Pressure : 150#,300#,600#,900#,1500#,2500#,PN6,PN10,PN16,PN25,PN40,PN64,etc.

Contact Now

B564 Hastelloy C276 Flange Corrosion-Resistant N10276 Long Weld Neck

What is Hastelloy C276 Flange?

Hastelloy C276 is a corrosion-resistant nickel-molybdenum-chromium alloy that is highly versatile and offers excellent resistance to a wide range of corrosive environments. Hastelloy C276 flanges are commonly used in industries where corrosive chemicals, acids, and high temperatures are present. Some of the common applications and industries where Hastelloy C276 flanges are used include:

1. Chemical processing: Hastelloy C276 flanges are widely used in chemical processing industries such as petrochemical plants, chemical manufacturing facilities, and pharmaceutical plants. They are resistant to a wide range of corrosive chemicals, acids, and solvents, making them ideal for handling and processing corrosive substances.
2. Oil and gas industry: Hastelloy C276 flanges are utilized in the oil and gas industry for various applications such as offshore drilling platforms, refineries, and pipelines. They offer excellent resistance to corrosion in harsh environments and high temperatures, making them suitable for use in oil and gas processing equipment.
3. Power generation: Hastelloy C276 flanges are commonly used in power generation facilities, including nuclear power plants and thermal power plants. They provide excellent corrosion resistance in high-temperature and high-pressure environments, making them ideal for use in boilers, heat exchangers, and other power generation equipment.
4. Pollution control: Hastelloy C276 flanges are employed in pollution control equipment, such as scrubbers, exhaust systems, and wastewater treatment plants. They can withstand exposure to corrosive gases, acids, and chemicals, making them suitable for use in environmental protection systems.
5. Aerospace and defense: Hastelloy C276 flanges are utilized in aerospace and defense applications, where corrosion resistance and high performance under extreme conditions are essential. They are used in gas turbines, jet engines, and other critical components that operate in demanding environments.

Overall, Hastelloy C276 flanges are known for their exceptional corrosion resistance, high strength, and versatility, making them a preferred choice for a wide range of industries and applications where corrosion-resistant materials are required.

Equivalent Grades for Hastelloy Alloy C276

STANDARD	UNS	WNR.	AFNOR	EN	JIS	OR	GOST
Hastelloy C276	N10276	2.4819	-	NiMo16Cr15W	NW 0276	ЭП760	ХН65МВУ

Chemical Composition for Hastelloy Alloy C276

Hastelloy C276	Ni	C	Mo	Mn	Si	Fe	P	S	Co	Cr
Hastelloy C276	Balance	0.010 max	15.00 – 17.00	1.00 max	0.08 max	4.00 – 7.00	0.04 max	0.03 max	2.5 max	14.50 – 16.50

Mechanical Properties for Hastelloy Alloy C276

Density	Melting Point	Yield Strength (0.2%Offset)	Tensile Strength	Elongation
8.89 g/cm3	1370 °C (2500 °F)	Psi – 52,000 , MPa – 355	Psi – 1,15,000 , MPa – 790	40 %

Raised Face Long Weld Neck Flange Tolerance

ASME B16.5	Tolerance
A	Outside Diameter (O.D.)	When Outside Diameter (O.D.) is 24″ or less: ±1/16″ (1.6 mm) When Outside Diameter (O.D.) is over 24″: ±1/8″ (3.2 mm)
D	Inside Diameter	10″ and smaller: ±1/32″ (0.8 millimeter) 12″ thru 18″: +1/8″ (3.2 millimeter) 20″ and larger: -1/16″ (1.6 millimeter)
B	Diameter of contact face	1/16″ raised face: ±1/32″ (0.8 millimeter) 1/4″ Raised Face (RF), Tongue & Groove (T/G), (male & female), (m/f): ±1/64″ (0.4 mm)
J	Diameter of hub at base	When hub base is 24″ or smaller: ±1/16″ (1.6 millimeter) When hub base is over 24″: ±1/8″ (3.2 millimeter)
H	Diameter of hub at point of welding	5″ and smaller: +3/32″ (2.4 millimeter), -1/32″ (0.8 millimeter) 6″ and larger: +5/32″ (4.0 millimeter), -1/32 (0.8 millimeter)
P	Drilling	Bolt circle: ±1/16″ (1.6 millimeter) Bolt hole spacing: ±1/32″ (0.8 millimeter)
	Eccentricity of bolt circle with respect to facing	2 1/2″ and smaller ±1/32″ (0.8 millimeter) max. 3″ and larger ±1/16″ (1.6 millimeter) max.
C	Thickness	18″ and smaller: ±1/8″ (3.2 millimeter), -0″ 20″ and larger: ±3/16″ (4.8 millimeter), -0″
K	Length of hub	10″ and smaller: ±1/16″ (1.6 millimeter) 12″ and larger: ±1/8″ (3.2 millimeter)
