ASME SA213 T11 K11597 1.7335 Alloy Steel Seamless Tube For Heat Exchanger

Brand Name : YUHONG

Model Number : ASME SA213 T11

Certification : ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001, ISO 14001, ISO18001

Place of Origin : China

MOQ : 1000KGS

Price : Negotiable

Payment Terms : T/T, L/C

Supply Ability : 1000 tons per month

Delivery Time : Depends on quantity

Packaging Details : Ply-wooden Case /Iron Case/ Bundle with plastic Cap/Woven Case

Specification : ASME SA213, ASTM A213

Grade : T1, T11, T12, T22, T23, T5, T9, T91, T92

NDT : Eddy Current Test , Ultrasonic Test, Hydrostatic Test

Third Party Inspection : BV, SGS, IBR, ABS, LR, DNV-GL , TUV

Application : Boilier, Heat Exchange, Heating , Cooling

Certificate : PED, ASME , ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001, ISO 14001, ISO18001

Contact Now

ASME SA213 T11 K11597 1.7335 Alloy Steel Seamless Tube For Heat Exchanger

T11 Tube Material is a low alloy ferritic stainless steel. There are carbon, silicon, manganese, nickel, phosphorus, chromium, sulfur and molybdenum in the content. The 0.5% carbon and 1% chromium bring the T11 Tube Material the good strength and corrosion resistance properties.

ASTM A213 T11 Tube is a boiler class stainless steel tube that is made from different material grades. The tubes are used in heat exchangers, super heaters and in boilers. The qualities of the pipes make them available for the high temperature services.

YUHONG Group is a manufacturer and supplier of these pipes in larger quantities. The ASME SA213 T11 Seamless Tube consists of carbon, manganese, phosphorous, sulfur, silicon, nickel, chromium and molybdenum. The composition provides the material with high tensile strength, high yield strength and high Brinell numbers.

A213: This indicates that the tube is manufactured according to ASTM A213 specifications, which cover seamless ferritic and austenitic alloy-steel boiler, superheater, and heat-exchanger tubes.

T11: This designates a specific alloy steel grade, which is part of the T series of alloys. T11 is a chromium-molybdenum alloy steel, known for its good weldability and high-temperature strength. The chemical composition typically includes approximately 1% chromium and 0.5% molybdenum, which helps improve its mechanical properties at elevated temperatures.

Standard Specification For ASTM A213 T11 Tubes

Specification ASTM A213 / ASME SA213
Outer Diameter Size 3/8" NB To 30" NB (Nominal Bore Size)
Wall Thickness Schedule 20 To Schedule XXS (Heavier On Request) Up to 250 mm Thickness
Length Standard length, Double length & In Cut length
Pipe Ends Plain Ends / Beveled Ends / threaded Ends/ Coupling
Process Seamless - Hot Rolled / Cold Drawn
Delivery Conditions As Rolled, Normalizing Rolled, Thermomechanical Rolled / Formed, Normalizing Formed, Normalized and Tempered / Quenched and Tempered - BR / N / Q /T
Packaging Loose / Bundle / Wooden Pallet / Wooden Box / Plastic Cloth Wraps / Plastic End Caps

T11 Chemical Composition:

Grade
C≤
Mn
P≤
S≤
Si≤
Mo
T11
0.05~0.15
0.30~0.60
0.025
0.025
0.50~1.0
0.44~0.65

Mechanical Properties:

Grade Tensile Strength, MPa Yield Strength, MPa Elongation, % Hardness, HB
T11 415 min 205 min 30 min 179 max

ASME SA213 T11 K11597 1.7335 Alloy Steel Seamless Tube For Heat Exchanger

Alloy T11 Equivalent Grades:

STANDARD WERKSTOFF NR. UNS
A213 T11 1.7335 K11597

ASTM A213/ ASME SA213 T11 Alloy Steel Tube Wall thickness & Tolerance:

Hot rolled ASTM A213/ ASME SA213 T11 Alloy Steel Tube
Outside Diameter, mm
Tolerance, %
OD≤101.6, WT≤2.4
+40/-0
OD≤101.6, 2.4＜WT≤3.8
+35/-0
OD≤101.6, 3.8＜WT≤4.6
+33/-0
OD≤101.6, WT>4.6
+28/-0
OD>101.6, 2.4＜WT≤3.8
+35/-0
OD>101.6, 3.8＜WT≤4.6
+33/-0
OD>101.6, WT>4.6
+28/-0
Cold Drawn ASTM A213/ ASME SA213 T11 Alloy Steel Tube
Outside Diameter, mm
Tolerance, %
OD≤38.1
+20/-0
OD>38.1
+22/-0

Applications:

-Oil and Gas Drilling
-Catering to domestic or industrial needs
-conveyance of fluids intended for critical high temperatures
-general corrosion service applications
-heat transfer process equipment like Boilers, Heat Exchangers
-General Engineering and Process Instrumentation applications


Product Tags:

Alloy Steel Heat Exchanger Tube



Alloy Steel Seamless Boiler Tubes



ASME SA213 Seamless Boiler Tubes


Wholesale ASME SA213 T11 K11597 1.7335 Alloy Steel Seamless Tube For Heat Exchanger from china suppliers

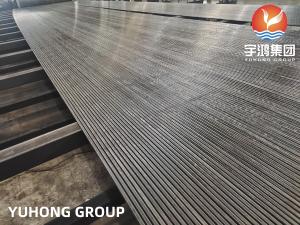

ASME SA213 T11 K11597 1.7335 Alloy Steel Seamless Tube For Heat Exchanger Images
