Nickel Alloy Flange ASTM B564 Inconel 625 / 2.4856 / UNS N06625 WNRF Flange

Brand Name : YUHONG

Model Number : ASTM B564 Inconel 625 / 2.4856 / UNS N06625 WNRF Flange

Certification : TUV, API, PED, ISO, BV, SGS, GL, DNV

Place of Origin : CHINA

MOQ : 1PC

Payment Terms : L/C,T/T

Delivery Time : 7 DAYS

Packaging Details : PLY-WOODEN CASE OR PALLET

Product Name : Nickel Alloy Flange

Standard : ASTM B564, ASME SB564

Dimension : ASME/ANSI B16.5, B16.47

Material : Inconel 625, DIN 2.4856, UNS N06625

Flange Type : WN, SO, BL, LWN, LJ

Flange Surface : FF, RF, RTJ

Packing : Plywood Case Or PALLET

Manufacturing Way : Forging

Certificate : TUV, API, PED, ISO, BV, SGS, GL, DNV

High Light : ASTM B564 UNS N06625 WNRF Flange, ASTM B564 Forged Flange

Contact Now

Nickel Alloy Flange , ASTM B564 Inconel 625 / 2.4856 / UNS N06625 WNRF Flange

YUHONG GROUP is one of the biggest projects pipeline products supplier in China. Our products contain steel pipe/tube,fittings, flanges. With decades of development, we have accumulated a great many clients all around the world and Yuhong products also won the great praise among the customers. The Inconel 625 Weld Neck flanges have high tensile strength and toughness that falls between a range that extends between cryogenic to 2000°F. This property if the alloy has been derived largely from the solid solution strengthening effects. The main applicants of Alloy 625 Forging Flanges include industries like marine and petroleum industries. Other advantages of using the Inconel 625 Flanges involves high fracture toughness as well as fabricability.

Equivalent of Inconel 625 Flanges

STANDARD WERKSTOFF NR. BS GOST EN UNS JIS
Inconel 625 2.4856 N06625 NA 21 ХН75МБТЮ NiCr23Fe NCF 625

Chemical Compositions of Inconel 625 Flanges

Grade C Mn Si S Cu Fe Ni Cr
Inconel 625 0.10max 0.50 max 0.50 max 0.015max 5.0 max 58.0 min 20.0 – 23.0

Mechanical Properties of Inconel 625 Flanges

Element Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
Inconel 625 8.4 g/cm3 1350 °C (2460 °F) Psi – 1,35,000 , MPa – 930 Psi – 75,000 , MPa – 517 42.5 %

More Grades And Standards

Stainless Steel :
Standard : ASTM / ASME A/SA 182
Grade : F 304, 304L, 304H, 309S, 309H, 310S, 310H, 316, 316TI, 316H, 316L, 316LN, 317, 317L, 321, 321H, 347, 347H, 904L
Duplex Steel :
Standard : ASTM / ASME A/SA 182
Grade : F 44, F 45, F51, F 53, F 55, F 60, F 61
Aluminium :
Standard : ASTM B247, B361.
Grade : 2024, 6061, 6063, 6101, 7075.
Titanium :
Standard : ASTM B381.
Grade : Grade 1, Grade 2, Grade 4, Grade 5, Grade 6, Grade 7, Grade 9, Grade 19, Grade 23
Carbon Steel :
Standard : ASTM A 105/A694/ A350 LF3/A350 LF2.
Grade : F42/46/52/56/60/65/70
Low Temperature Carbon Steel :
Standard : ASTM A 350 LF2 / A350 LF3
Alloy Steel :
Standard : ASTM A182
Grade : F1/F5/F9/F11/F22/F91
Copper Alloy :
Standard : ASTM / ASME SB 61 / 62 / 151 / 152.
Grade : UNS NO. C 70600 (CU -NI- 90/10), C 71500 (CU -NI- 70/30) C 71640
Nickel Alloy :
Standard : ASTM / ASME SB 564 / 160 / 472
• Nickel 200 UNS N02200 • Nickel 201 UNS N02201 • Monel 400 UNS N04400
• Monel K500 UNS N05500 • Inconel K600 UNS N06600 • Inconel 601 UNS N06601
• Inconel 625 UNS N06625 • Inconel 800 UNS N08800 • Inconel 800H UNS N08810
• Inconel 825 UNS N08825 • Hastelloy C276 UNS N10276 • Alloy 20 UNS N08020

Applications

  • 1. Aircraft ducting systems
  • 2. Aerospace
  • 3. Jet engine exhaust systems
  • 4. Engine thrust-reverser systems
  • 5. Specialized seawater equipment
  • 6. Chemical process equipment

Nickel Alloy Flange ASTM B564 Inconel 625 / 2.4856 / UNS N06625 WNRF Flange


Product Tags:

Nickel Alloy WNRF Flange



2.4856 Nickel Alloy Flange



UNS N06625 Nickel Alloy Flange


Wholesale Nickel Alloy Flange ASTM B564 Inconel 625 / 2.4856 / UNS N06625 WNRF Flange from china suppliers

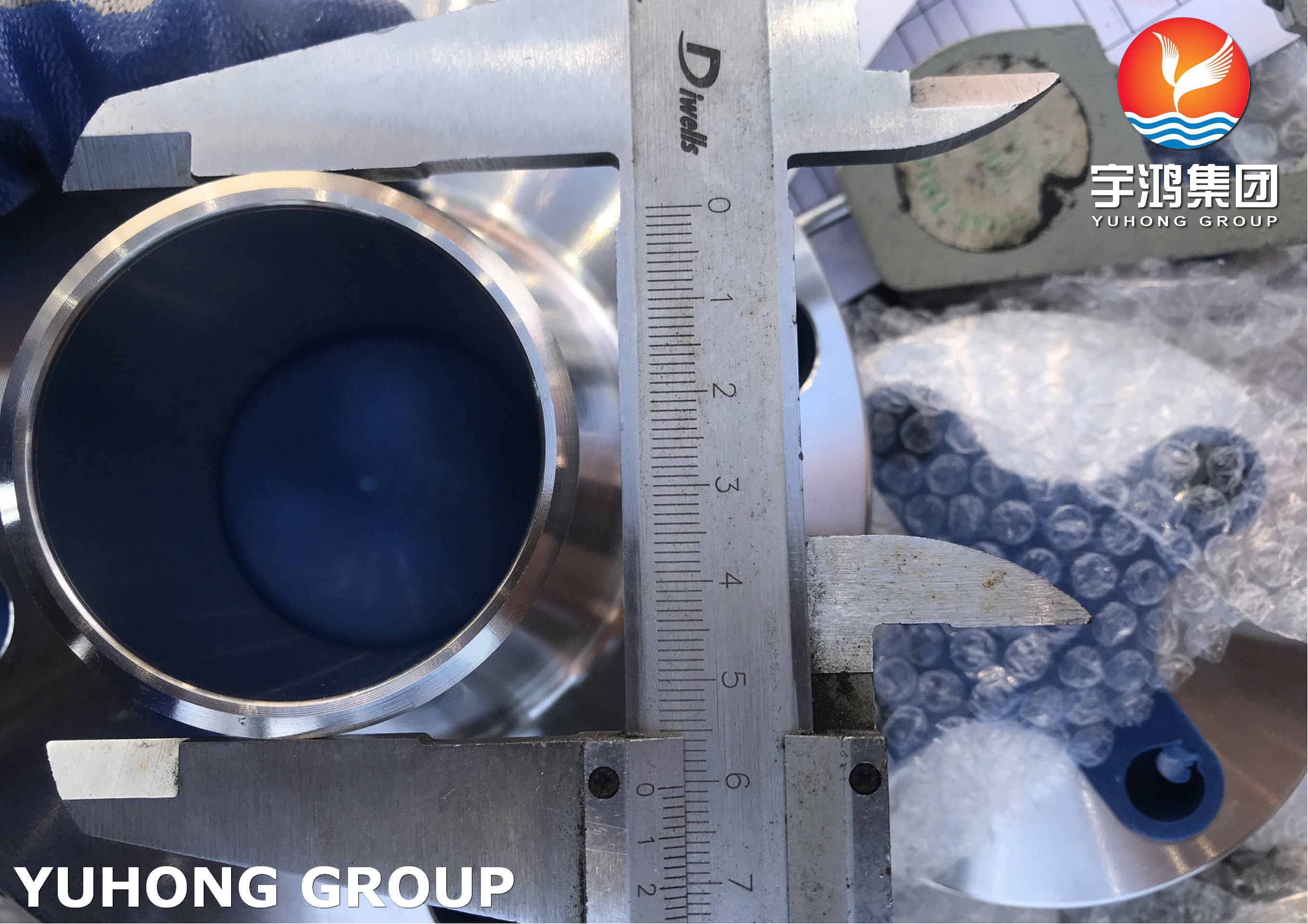

Nickel Alloy Flange ASTM B564 Inconel 625 / 2.4856 / UNS N06625 WNRF Flange Images
