ASME SB564 Monel400 Nickel-Copper Alloy Steel Flanges
YUHONG supplies the Monel400 Flanges, is a Nickel-Copper Alloy (about 67% Ni – 23% Cu) that is resistant to sea water and steam at high temperatures as well as to salt and caustic solutions. Alloy 400 is a solid solution alloy that can only be hardened by cold working. This nickel alloy exhibits characteristics like good corrosion resistance, good weld-ability and high strength.
A low corrosion rate in rapidly flowing brackish or seawater combined with excellent resistance to stress-corrosion cracking in most fresh-waters, and its resistance to a variety of corrosive conditions led to its wide use in marine applications and other non-oxidizing chloride solutions. This nickel alloy is particularly resistant to hydrochloric and hydrofluoric acids when they are de-aerated. As would be expected from its high copper content, alloy 400 is rapidly attacked by nitric acid and ammonia systems.
Monel 400 also has great mechanical properties at subzero temperatures, can be used in temperatures up to 1000° F, and its melting point is 2370-2460° F. However, Alloy 400 is low in strength in the annealed condition so, a variety of tempers may be used to increase the strength.
Specification Of ASME SB564 Monel400
| Type | WN Flange, Thread Flange,Loose Flange,Slip On Flange,SW Flange, Blind Flange, Plate Flange,etc |
| Standard | ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc. |
| Size | 1/2″ to 48″NB |
| Class / Pressure | 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc. |
| Flange Face Type | Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ) |
| Flange Delivery Condition | As Rolled, Normalizing Rolled, Thermomechanical Rolled / Formed, Normalizing Formed, Normalized and Tempered / Quenched and Tempered - BR / N / Q /T, Machined |
| Flange Dimension Standard | Standard - ANSI - ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, and ANSI B16.48 |
| Other Testing | NACE MR0175, NACE TM0177, NACE TM0284, CHARPY V-NOTCH TEST, RADIOGRAPHIC EXAMINATION, XRAY, ULTRASONIC EXAMINATION, LIQUID PENETRANT, MAGNETIC PARTICLE, HIC TEST, SSC TEST, SWC, H2 SERVICE, IBR, PWHT etc. |
| Flange Value Added Service | Draw / Expansion / Machining / Sand Blasting / Shot Blasting / Galavanizing / Heat Treatment |
| Flange Packaging | Loose / Bundle / Wooden Pallet / Wooden Box / Plastic Cloth Wraps / Plastic End Caps / Beveled Protector |
Chemical Composition Of ASME SB564 Monel400
| ELEMENT | COMPOSITION (%) |
| Carbon | 0.30 max |
| Manganese | 2 max |
| Sulfur | 0.024 |
| Silicon | 0.5 max |
| Copper | 28-34 |
| Nickel | Remainder |
Physical Properties Of ASME SB564 Monel400
| Properties | Metric | Imperial |
| Density | 8.8 gm/cm3 | 0.318 lb/in3 |
Mechanical Properties Of ASME SB564 Monel400
| Properties | Metric | Imperial |
| Tensile strength(annealed) | 517-620 MPa | 75-90 ksi |
| Yield strength | 172-345 MPa | 25-50 ksi |
| Modulus of elasticity | 179 GPa | 26000 ksi |
| Poisson’s ratio | 0.32 | 0.32 |
Applications
Marine fixtures, pumps, valves and piping systems for sea water applications
Chemical plant equipment
Aerospace applications
Musical instruments
Heat exchangers
High pressure applications
Offshore applications
Onshore applications
Welded pressure vessels for the storage of cryogens
Product Tags:
|
|

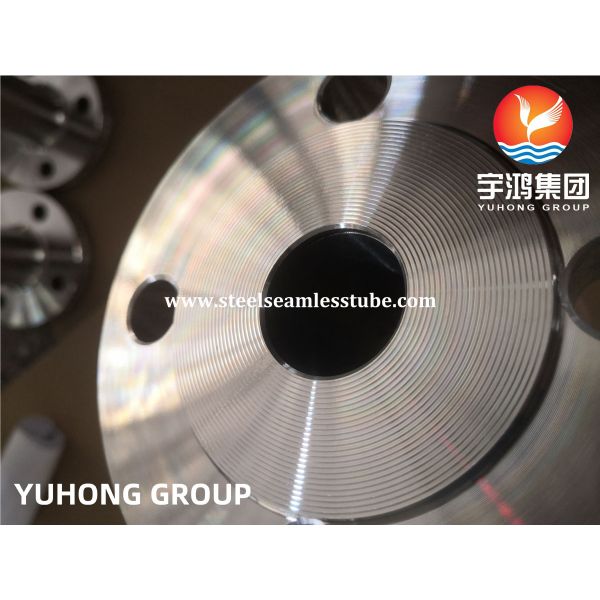

ASME SB564 Monel400 Nickel Copper Alloy Steel Flanges Images
|
