SS Pipe Fitting JIS B2312 SUS304 1.4301 45 Degree LR Elbow Oil And Gas
YUHONG GROUP is engaged in manufacturing of a wide range of Butt Weld Fitting that is available in varied types such as L/R & S/R elbow, tee, concentric and eccentric reducers, reducing elbow & tee, cross and caps.
What is a 45 degree elbow?
A 45 degree elbow is also called a "45 bend" It is a fitting which is bent in such a way to produce 45 degree change in the direction of flow in the pipe. It is used to change the direction in piping and is also sometimes called a "quarter bend".
What is JIS B2312?
This standard specifies the steel and nickel chromium ferro alloy seamless pipe fittings to be fitted by butt welding,mainly to pressure service pipings 1), high pressure service pipings 2), high temperature service pipings 3), alloy steel pipings 4) stainless steel pipings 5) low temperature service pipings 6) and steel pipes for fired heaters 7) (hereafter referred to as “pipe fittings”).
Standard Dimensions Of JIS B2312 Elbow
| NPS Of JIS B2312 Elbows | O.D. | Center to End | 45 Degree Weight In KG |
| Normal Size Of Pipe | 45 Degree (B) | KG/PC |
| (A) | (B) | (D) | (Long) | (Long) |
| 15 | ½ | 21.7 | 15.8 | 0.04 |
| 20 | ¾ | 27.2 | 15.8 | 0.05 |
| 25 | 1 | 34 | 15.8 | 0.08 |
| 32 | 1¼ | 42.7 | 19.7 | 0.13 |
| 40 | 1½ | 48.6 | 23.7 | 0.18 |
| 50 | 2 | 60.5 | 31.6 | 0.32 |
| 65 | 2½ | 76.3 | 39.5 | 0.56 |
| 80 | 3 | 89.1 | 47.3 | 0.79 |
| 90 | 3½ | 101.6 | 55.3 | 1.09 |
| 100 | 4 | 114.3 | 63.1 | 1.46 |
| 125 | 5 | 139.8 | 78.9 | 2.25 |
| 150 | 6 | 165.2 | 94.7 | 3.55 |
| 200 | 8 | 216.3 | 126.3 | 7.2 |
| 250 | 10 | 267.4 | 157.8 | 12.7 |
| 300 | 12 | 318.5 | 189.4 | 19.05 |
| 350 | 14 | 355.6 | 220.9 | 28.35 |
| 400 | 16 | 406.4 | 252.5 | 37.15 |
| 450 | 18 | 457.2 | 284.1 | 47.1 |
| 500 | 20 | 508 | 315.6 | 58 |
| 550 | 22 | 558.8 | 347.2 | 70.5 |
| 600 | 24 | 609.6 | 378.7 | 84 |
| 650 | 26 | 660.4 | 410.3 | 99 |
| 700 | 28 | 711.2 | 441.9 | 115 |
| 750 | 30 | 762 | 473.4 | 132 |
| 800 | 32 | 812.8 | 505 | 150.5 |
| 850 | 34 | 863.6 | 536.6 | 170 |
| 900 | 36 | 914.4 | 568.1 | 190 |
| 950 | 38 | 965.2 | 599.7 | 212.5 |
| 1000 | 40 | 1016 | 631.2 | 235.5 |
| 1050 | 42 | 1066.8 | 662.8 | 259 |
| 1100 | 44 | 1117.6 | 694.4 | 285 |
| 1150 | 46 | 1168.4 | 725.9 | 311.5 |
| 1200 | 48 | 1219.2 | 757.5 | 338.5 |
Chemical Composition and Mechanical Property for 304:
| Steel Grade | Chemical Composition | Mechanical Performance |
| C(Max) | Si(Max) | Mn(Max) | P(Max) | S(Max) | Ni | Cr | N | Mo | Tensile Strength
(Min) | Yield Strength
(Min) |
| Mpa | Mpa |
| 304 | 0.08 | 0.75 | 2.00 | 0.045 | 0.03 | 8.0–10.5 | 18.0–20.0 | 0.1 | / | 515 | 205 |
Stainless Steel 304 Equivalent Grades:
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS304 | 1.4301 | S30400 | SUS 304 | 304S31 | 08Х18Н10 | Z7CN18‐09 | X5CrNi18-10 |
Applications:
-Condensers
-Chemical Equipment
-Off-Shore Oil Drilling Companies
-Petrochemicals
-Gas Processing
-Pulp and Paper Industry
-Sea Water Equipment
-Pharmaceutical Equipment
-Heat Exchangers
-Pharmaceuticals
-Specialty Chemicals
-Power Generation
|
|

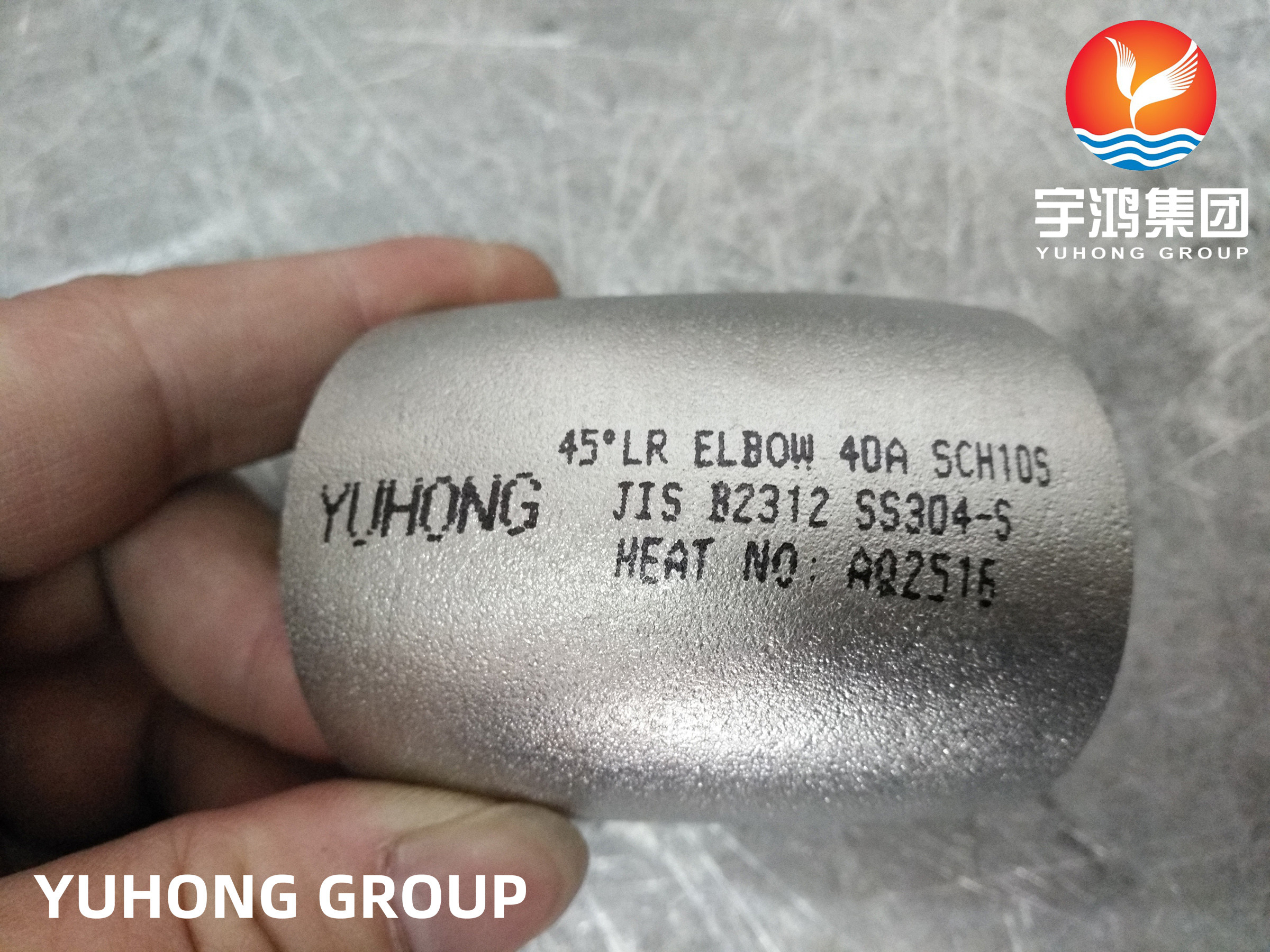

SS Pipe Fitting JIS B2312 SUS304 1.4301 45 Degree LR Elbow Oil And Gas Images
|
