PVC Sheathed Multicore Coil Tube With Stainless Steel, Copper, Copper-Nickel Alloy Tube

PVC Sheathed Multicore Coil Tube With Stainless Steel, Copper, Copper-Nickel Alloy Tube

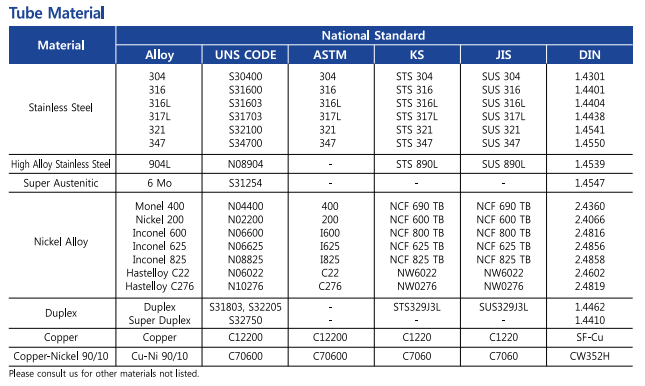

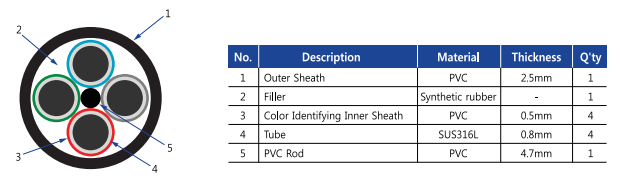

Multicore Tubes are spirally laid up and they’re available with stainless steel tubes, copper tubes and copper nickel alloy tubes. To get easier identification and protection of tubes, individual tubes are sheathed by PVC of marked at each meter throughout the whole length for easy installation. Extruded outer sheath is oil resistant, weather proof, flame-retardant, corrosion and acid resistant and physical&chemical protection. Multicore tubes efficiently connect installation, maintenance and control at the same time. They are made of stainless steel, cunifer or copper, with a total of 10 tubes max in the bundle, and other tube dimensions from 6 to 15 mm or from ¼” to ½”, up to the maximum operating pressure of 440 Bar. They are usually used in shipbuilding, offshore plants and for liquid, gas or electricity transport.

Covering Materials:
PVC, PVC TCR, FR PVC, HFFR TPU, HFFR PE, PEHD, MDPE, LDPE, XLPE...

Features:

• Good Corrosion Resistance
• Low Heat Conductivity
• High Impact Resistance
• Ultra Ductility
• Heavy Durability
• Seawater Resistance

Applications:

• Shipbuilding Equipment
• Offshore System
• Electricity Industry
• High-Precision Instrumentation
• High-Precision Instrumentation
• Valve Remote Control(VRC)Lines
• Fire Fighting Control Lines
• Deck Machinery Remote Control Lines
• Fixed Gas Detection Sensing Lines
• Pressure Sensing Lines
• Sampling &Drain Lines
• Heat Tracing Lines
• Tank Level &Draft Gauging Lines
• Wellhead Control Panel Lines
• Chemical Injection Lines

PVC Sheathed Multicore Coil Tube With Stainless Steel, Copper, Copper-Nickel Alloy Tube Images
