ASTM B163 UNS N04400 Nickel Alloy 400 Seamless Tube Condensador
YuHong Group, one of the leading suppliers in China,we supply nickel alloy seamless pipes and tubes with high quality to our customers and we have many experiences in exporting.
ASTM B163 This specification covers seamless tubes of nickel and nickel alloys, for use in condenser and heat-exchanger service.
Alloy 400, it is referred to by the tradename Monel 400, is a nickel-copper alloy exhibiting excellent corrosion resistance in seawater, marine atmospheres, organic acids, and other aggressive media. Monel 400 exhibits outstanding corrosion resistance, high strength, and toughness over a wide range of temperatures.
Distinctive Characteristic
Corrosion Resistance
Monel 400 is one of the few alloys that can withstand unaerated hydrofluoric acid and is virtually immune to chloride stress corrosion cracking. Besides, Monel 400 exhibits outstanding corrosion resistance in seawater, reducing acids, non-oxidizing salts, alkalis, high-temperature steam, and other media.
Chemical Composition % Nickel Copper Alloy
| Ni | Cu | Fe | Mn | C | Si | S |
| 63min (A) | 28-34 | 2.5max | 2max | 0.3max | 0.5 | 0.024max |
(A) Element shall be determined arithmetically by difference
Mechanical Property
| Condition | Tensile Strength min | Yield Strength min | Elongation min | Rockwell Hardness |
| Annealed | 70 ksi (483 MPa) | 28 ksi (193 MPa) | 35% | / |
| Stress-Relieved | 85 ksi (586 MPa) | 55 ksi (379 MPa) | 15% | B75 max |
Monel 400 can be provided in the lower strength, annealed condition, or strengthened through the pilger process. Alloy 400 maintains excellent toughness even in the higher strength conditions.
Applications
Oil & Gas
Chemical Processing
Marine
Transportation
Agriculture
Aerospace
Pharmaceuticals
Be used in many different market segments, including oil & gas, chemical processing, marine, piping, heat exchangers, transportation, agriculture, and aerospace
Welcome your inquiry of nickel alloy tubes to YUHONG Group!
Product Tags:
|
|

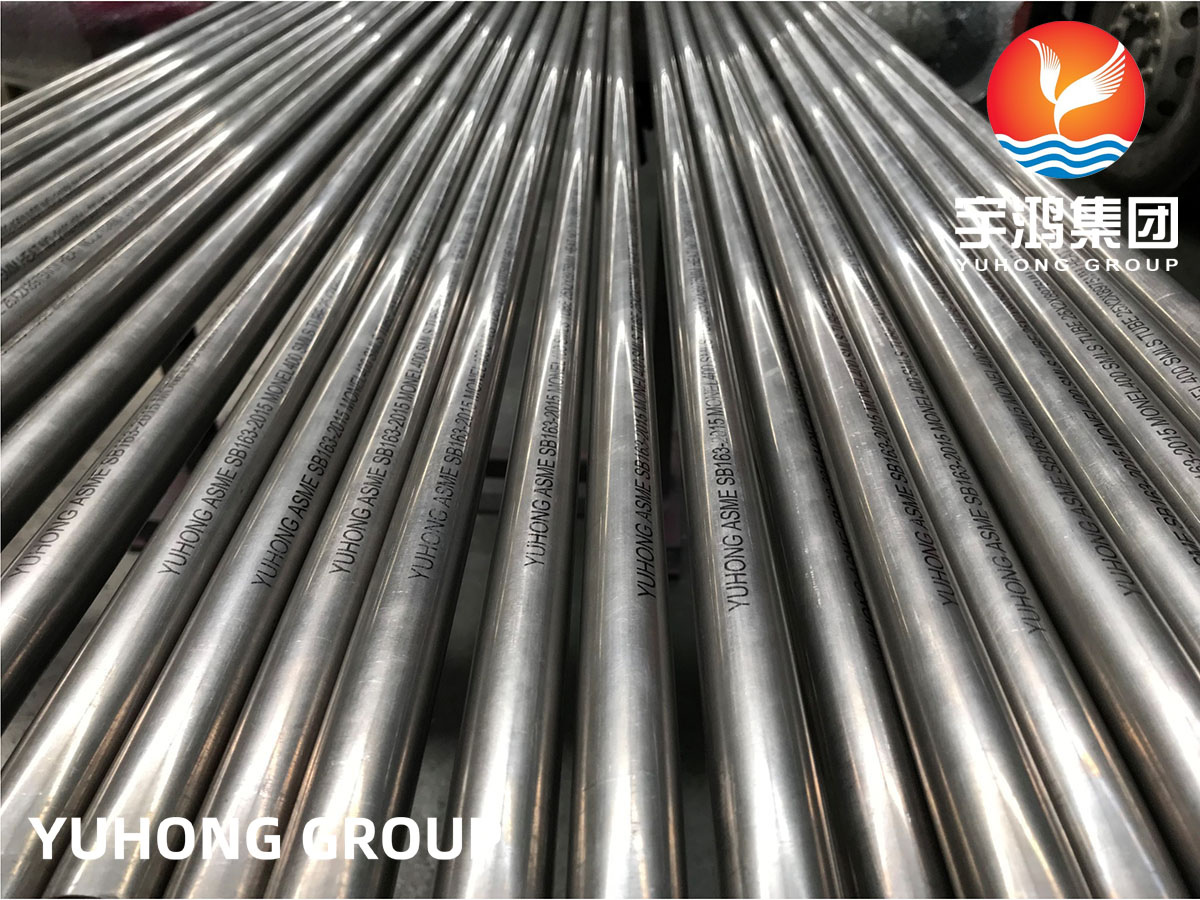

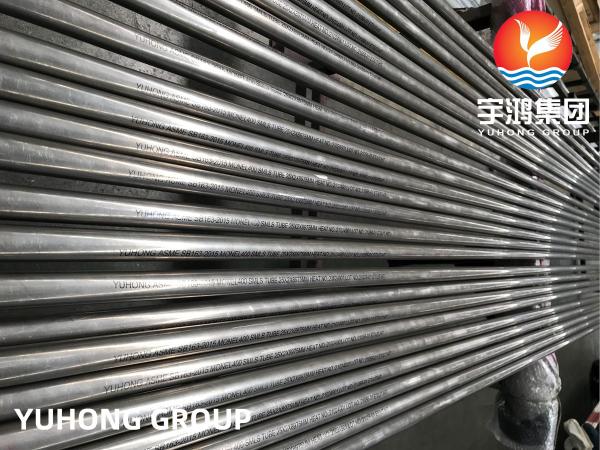

ASTM B163 UNS N04400 Nickel Alloy 400 Seamless Tube Condensador Images
|
